Transformer Solutions

Highly efficient power, distribution, dry-type, and oil-cooled transformers matched with custom high-current bus duct systems.

Explore Products Request Catalog
Transformer Solutions

Product Lineup

Explore our range of premium, type-tested components engineered for efficiency.

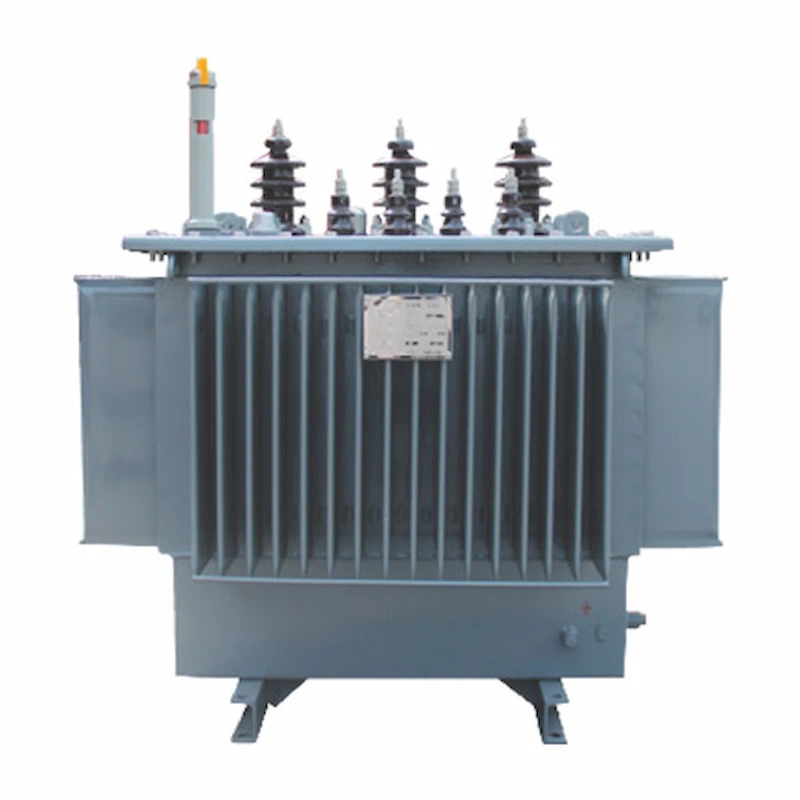

3150 KVA Transformer with 5000A Bus Duct

3150 KVA Transformer with 5000A Bus Duct

Integrated power solution featuring a 3150 KVA oil-cooled transformer coupled with a custom-engineered 5000A low-loss bus duct system.

3150 KVA high-efficiency oil-filled transformer
5000A continuous rated sandwich bus duct system
Flexible copper expansion joints on the transformer bushings
Low temperature rise busbar configuration under continuous full loads
Integrated oil temperature and winding temperature trip controls
View Details

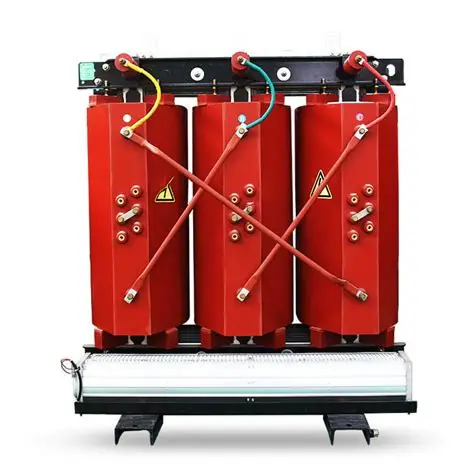

Dry Type Transformer

Dry Type Transformer

Cast Resin Dry Type transformers designed for indoor installations where fire hazards must be completely eliminated.

Cast Resin insulation (Class F or Class H) preventing fire hazards
No risk of oil leakage, making it environmentally friendly
Minimal maintenance requirements (no oil filtering/testing)
Enclosure fitted with cooling fans and temperature scanning controller
Compact footprint suitable for indoor basement placement
View Details

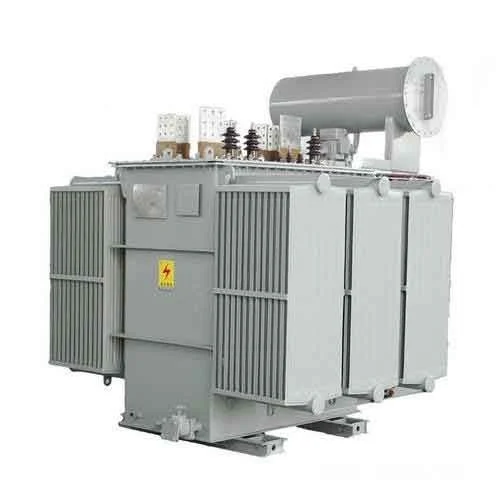

Oil Cooled Transformer

Oil Cooled Transformer

Highly robust outdoor oil-filled transformers designed for power transmission and general industrial utility feeds.

ONAN cooling radiators with optimized heat dissipation surfaces
Corrugated tank or conservator design with silica gel breathers
Buchholz relay integrated for gas detection and internal fault tripping
High dielectric strength transformer oil used for insulation
Robust mechanical frame designed to withstand lightning impulses
View Details

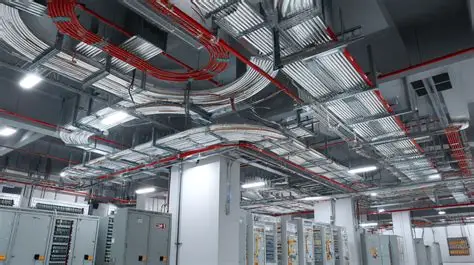

Bus Duct System

Bus Duct System

Custom-built metal-enclosed sandwich or air-insulated bus duct systems for low impedance power transmission between major sub-station blocks.

Sandwich block design with low voltage drop and reactance
Enclosure made of extruded aluminum for low weight and eddy current loss reduction
High grade insulation (Class F epoxy/polyester coating)
Custom fire barriers installed at wall crossings
Bellows and expansion joint links to absorb vibration and structural movements
View Details

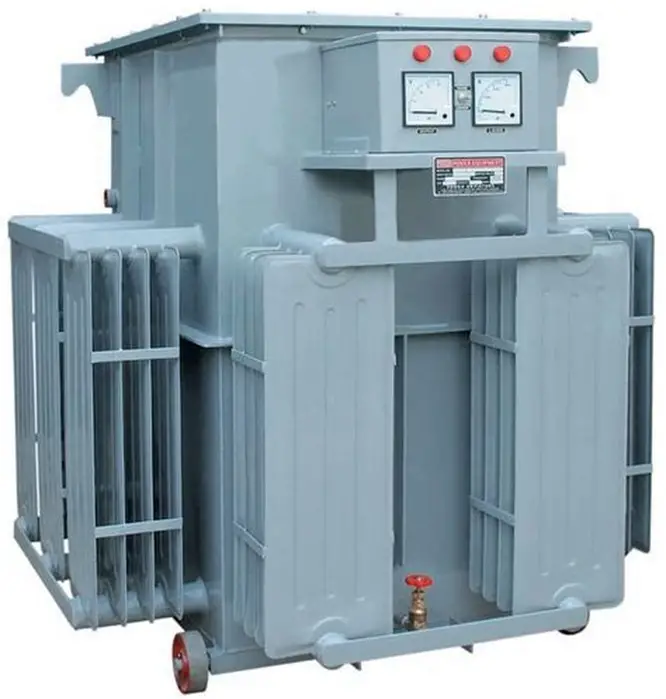

Distribution Transformer

Distribution Transformer

Standard pole-mounted or ground-mounted distribution transformers used to step down grid tension to consumer levels.

Standardized energy-efficient designs matching government norms
Low load-losses and no-load losses matching Bureau of Energy Efficiency (BEE) guidelines
Sturdy pole-mounting bracket fixtures or skid bases
Corrosion-resistant paint system for outdoor environments
Integrated cable boxes or outdoor bushing terminals
View Details

Need a Custom Engineering Solution?

Contact our technical sales team for customized specifications, layout drawings, and quick quotation proposals.

Submit Technical Inquiry
