Solar Solutions

Specialized ACDB, DCDB, solar synchronization panels, and solar LT boards designed to maximize PV power plant yield and safety.

Explore Products Request Catalog
Solar Solutions

Product Lineup

Explore our range of premium, type-tested components engineered for efficiency.

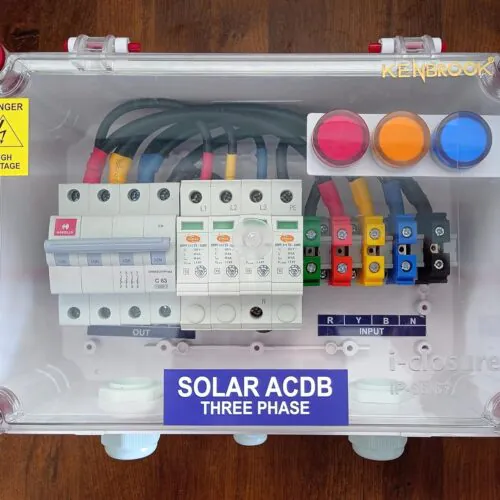

Solar ACDB

Solar ACDB

AC Distribution Boards (ACDB) that collect power from solar inverter AC outputs, fitted with safety disconnectors and digital meters.

Type 2 AC surge protection devices (SPDs) to block line transients
Molded Case Circuit Breakers (MCCBs) for short circuit protection
Clear internal layout facilitating rapid string maintenance
Multifunction digital display for monitoring total generation
IP65 outdoor rating with UV-stabilized gaskets
View Details

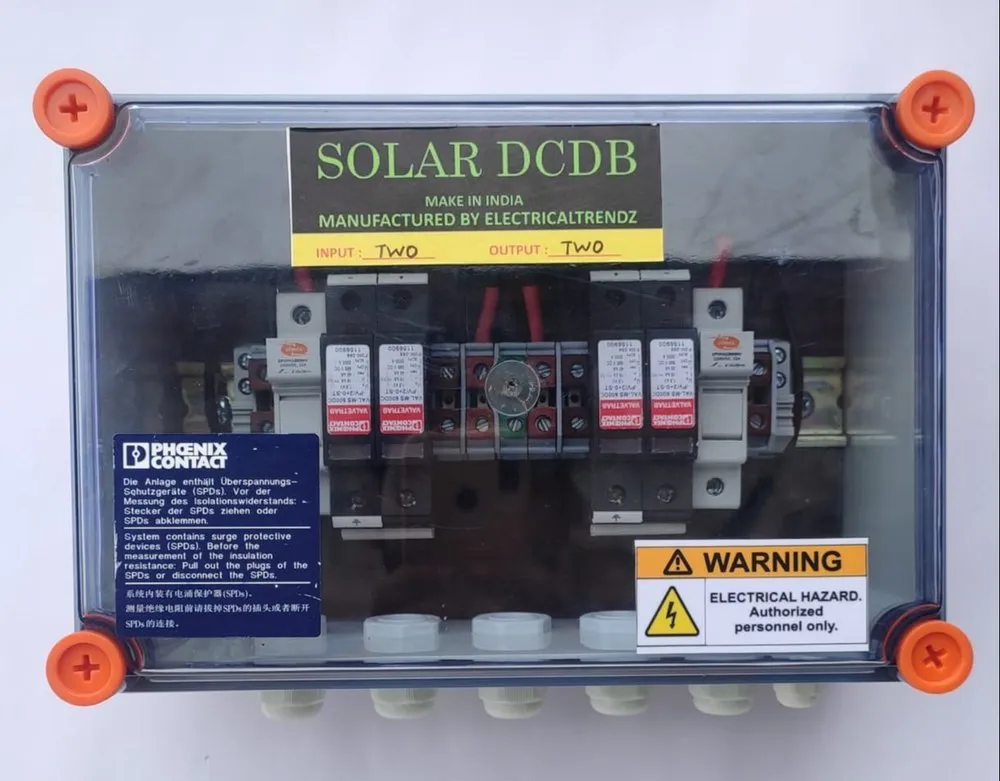

Solar DCDB

Solar DCDB

Direct Current Distribution Box (DCDB) that aggregates DC inputs from solar PV strings and provides fuse isolation and lightning surge filtering before feeding the inverter.

Fitted with DC surge protection devices (SPDs) up to 1000V/1500V DC
DC gPV fuses on positive and negative string legs
DC load break isolators for safe manual string shut-downs
FRP or polycarbonate enclosure with high dielectric isolation
IP65 waterproof rating with cable glands or MC4 connectors
View Details

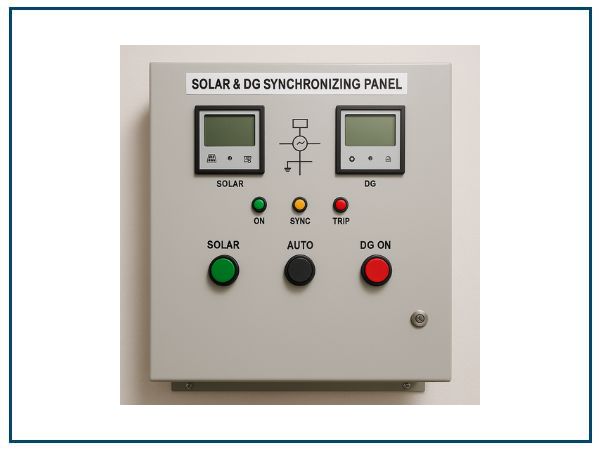

Solar Synchronization Panel

Solar Synchronization Panel

Intelligent control boards that automatically synchronize solar inverter feeds with diesel generator output, protecting generators from reverse power flows.

Intelligent PLC-based controller monitoring active load splits
Ultra-fast reverse power relays preventing generator engine back-feeding
Automatic load-shedding and load-sharing algorithms
Integrated modbus communication to read inverter output status
Touchscreen graphic display showing utility/solar/generator power status
View Details

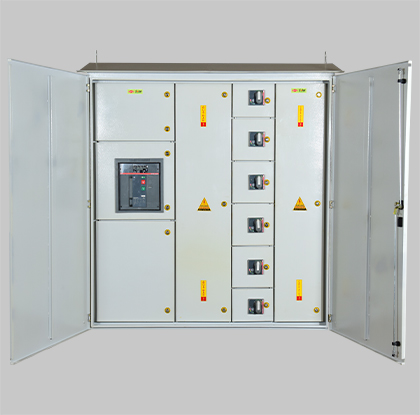

Solar LT Panel

Solar LT Panel

Main LT distribution boards custom configured for utility-scale solar farms, collecting power from string inverters and feeding the grid step-up transformer.

High capacity main incomer with draw-out Air Circuit Breakers
Multi-core protection schemes including busbar differential relays
Busbar chambers engineered to handle high ambient summer heat in solar parks
Dual incomer setups with automatic transfer switches (ATS)
Compliance with local state-utility grid interconnection requirements
View Details

Need a Custom Engineering Solution?

Contact our technical sales team for customized specifications, layout drawings, and quick quotation proposals.

Submit Technical Inquiry
