Medium Voltage Panels

High-performance Medium Voltage (MV) switchgear and HT panels engineered for safety, fault clearance, and substation control up to 33KV.

Explore Products Request Catalog
Medium Voltage Panels

Product Lineup

Explore our range of premium, type-tested components engineered for efficiency.

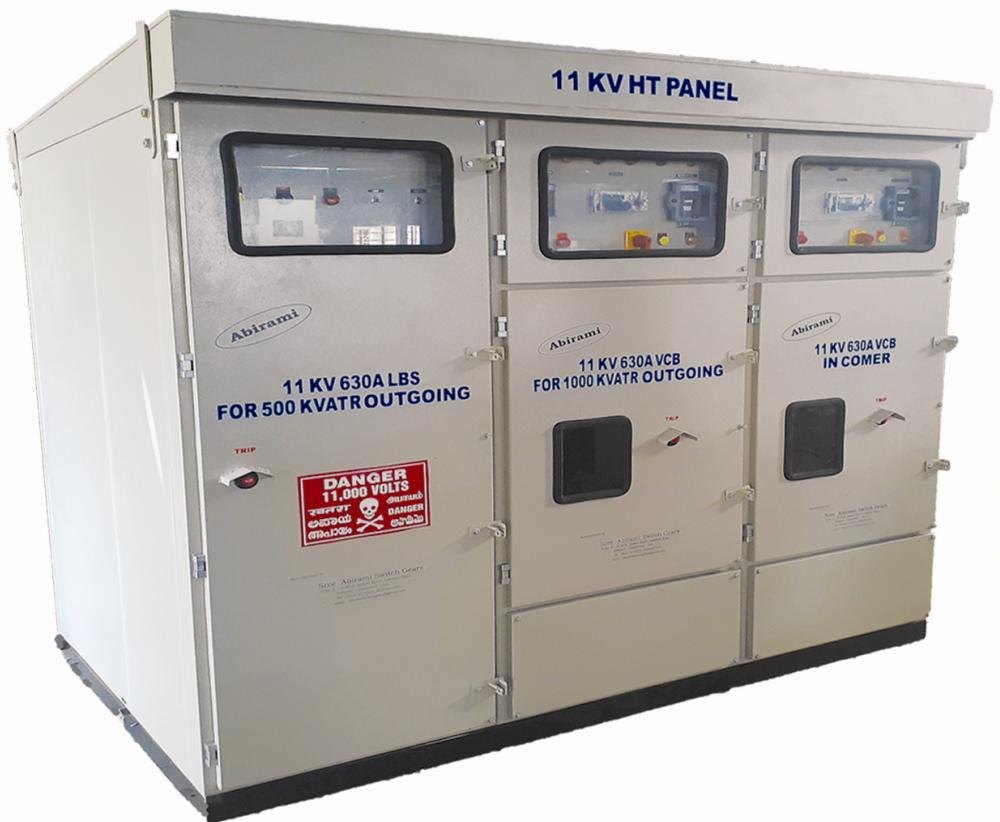

11KV HT Panel

11KV HT Panel

11KV High Tension switchgear panels utilizing Vacuum Circuit Breakers (VCBs) to control and protect medium voltage grid feeds and transformers.

Metal-clad partition layout for maximum personnel safety
Internal Arc Classified (IAC AFLR) design
Highly reliable Vacuum Circuit Breakers with motor-charged mechanisms
Numerical protection relays for overcurrent and earth faults
Mechanical position indicators and safety shutters
View Details

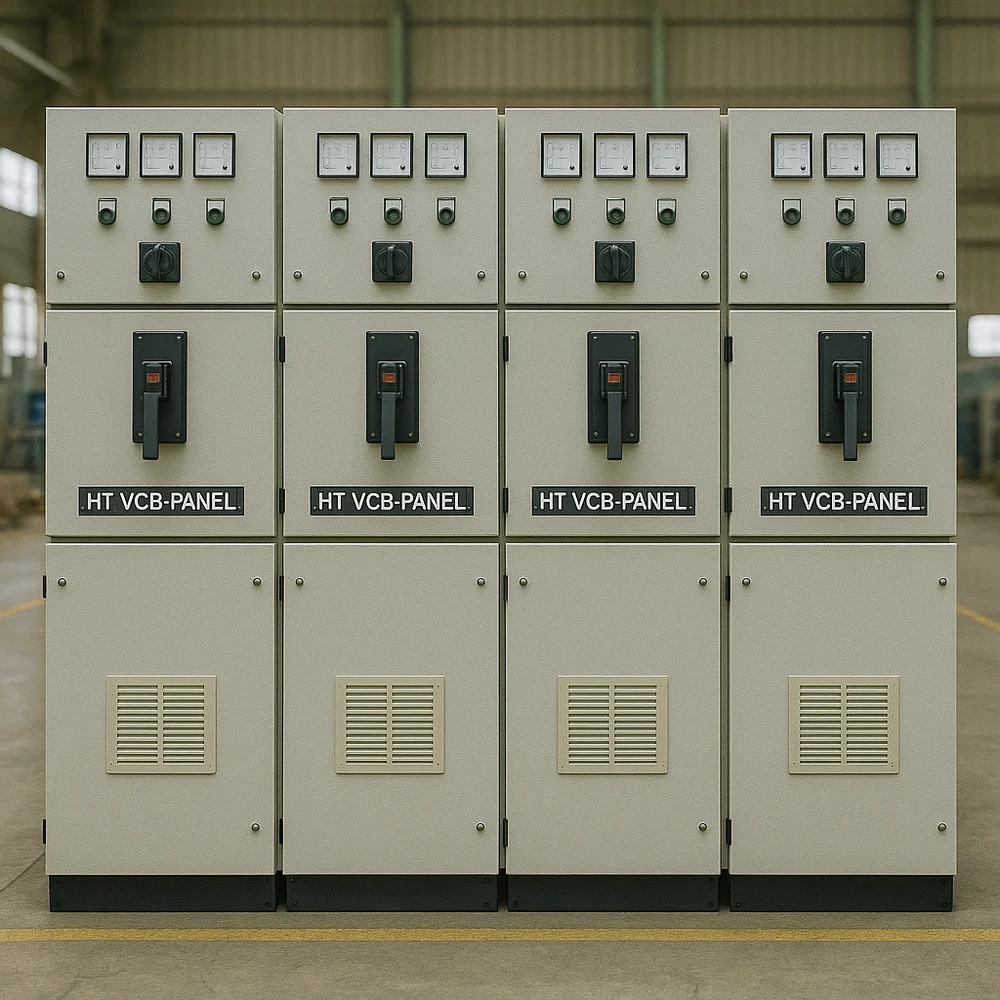

33KV HT Panel

33KV HT Panel

Heavy-duty 33KV High Tension switchgear designed for medium-voltage receiving substations, featuring high insulation levels and circuit breakers.

Air-insulated metal enclosed medium-voltage panels
Fitted with SF6 gas or Vacuum switchgear options
Advanced protection schemes including differential and distance relays
Pressure relief flaps to vent hot gases away from operators
Robust interlocking system to prevent draw-out under load
View Details

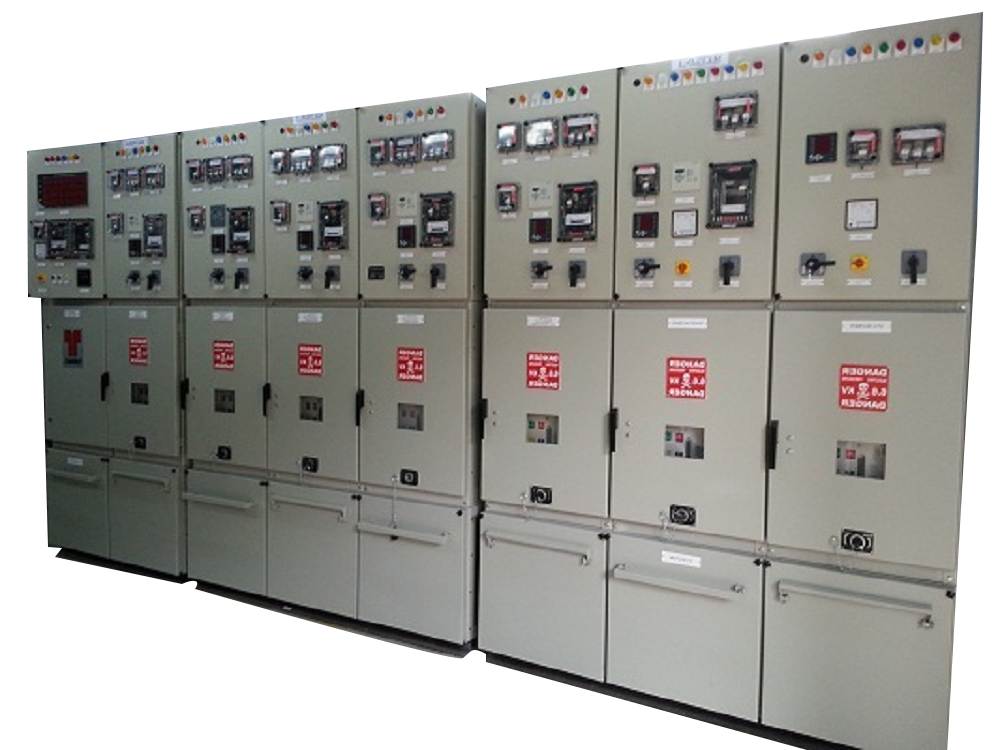

VCB Panel

VCB Panel

Vacuum Circuit Breaker (VCB) panels incorporating vacuum interrupters for zero maintenance switching and arc extinguishing.

Vacuum interrupters with long electrical and mechanical lifespan
Spring charged operating mechanism (manual or motor driven)
Low maintenance and zero carbon deposits inside contacts
Safety locks preventing breaker racking-in while switch is ON
CT/PT metering blocks integrated inside the enclosure
View Details

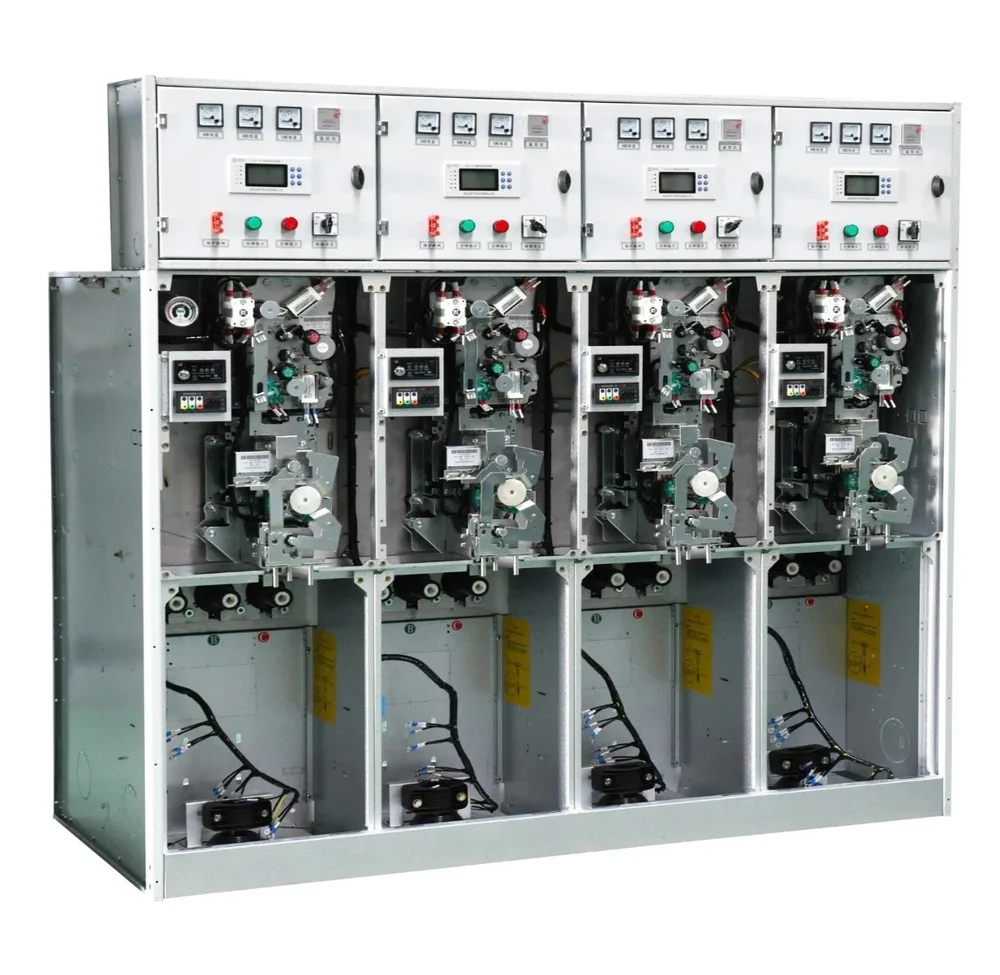

RMU Panel

RMU Panel

Ring Main Unit (RMU) gas-insulated compact switchgear designed for medium voltage loop distribution systems in urban networks.

Completely sealed stainless steel tank filled with SF6 gas
Compact design ideal for installation in tight spaces
Maintenance-free lifetime sealing of primary conductors
Equipped with vacuum circuit breakers or switch-disconnectors
Integrated smart RTU for SCADA and grid automation
View Details

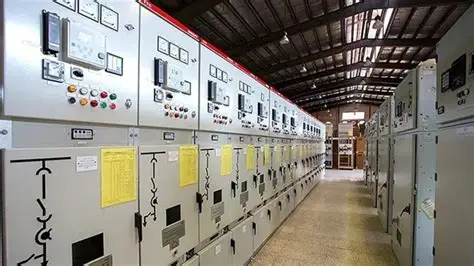

Medium Voltage Switchgear

Medium Voltage Switchgear

Integrated medium voltage switchgear assemblies incorporating circuit breakers, disconnectors, current/voltage transformers, and protection relays.

Factory assembled and type-tested switchboard structures
Logical interlocking schemes to ensure mistake-proof operations
Comprehensive electrical diagnostic indicators and sensors
Robust hot-dip galvanized steel frames with epoxy coating
Integrated auxiliary power supply terminals
View Details

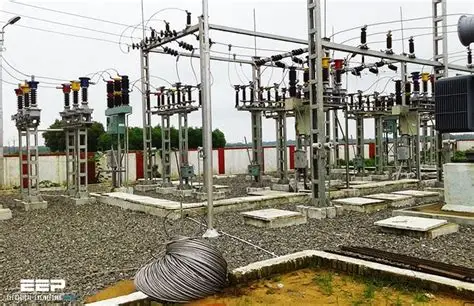

11/33KV HT Sub Station

11/33KV HT Sub Station

Complete outdoor High Tension substations including structural switchyards, lightning protection masts, isolators, and transformer links.

Complete engineering, supply, and structural switchyard installation
Heavy-duty outdoor isolators with earth-switch extensions
Surge arresters positioned for direct transformer protection
Robust steel structural frames with hot-dip galvanizing
Lightning protection shields and grounding grid designs
View Details

Need a Custom Engineering Solution?

Contact our technical sales team for customized specifications, layout drawings, and quick quotation proposals.

Submit Technical Inquiry
